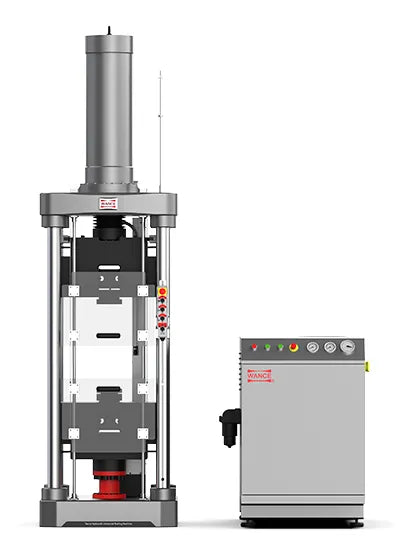

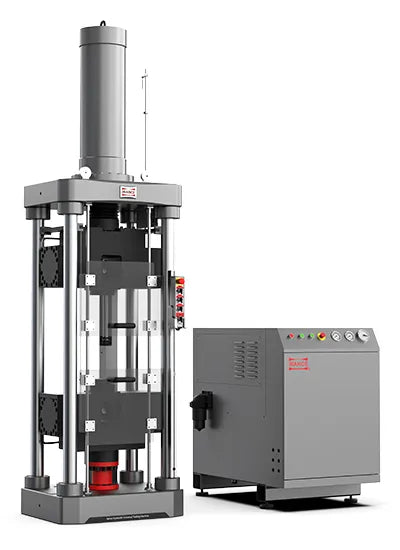

Servo-Hydraulic Universal Testing Machine 500kN - 2000kN (4 Column)

Metalitest supplies universal testing machines for tensile, compression, flexural, shear, peel, tear and bend testing across metals, plastics, composites and finished components.

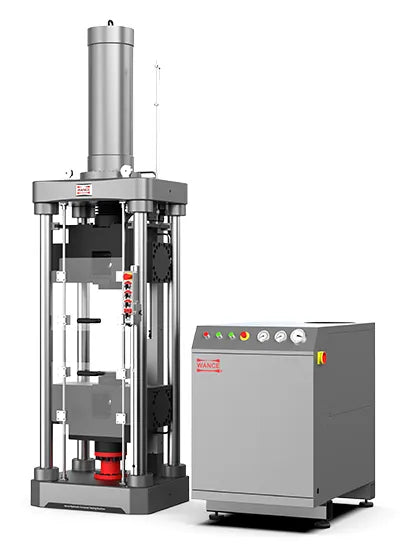

This servo-hydraulic universal testing machine utilises a top mounted actuator design, enabling a dual-acting differential cylinder to perform both tensile and compression tests within a single test space.  The advanced hydraulic side-action tensile grips securely hold the specimen without introducing excessive initial gripping force, delivering outstanding clamping performance for high-strength and ultra-high-strength materials.

Typical applications include testing of rebar, rebar couplers, castings, fasteners, chains, etc.

Key features:
• 4 Column design - extra stiffness
• Suitable for tensile and compression testing
• Wide range of grips, fixtures and extensometers available
• User-friendly control and data analysis software
• Configurable for ISO and ASTM test standards

Available in the following force capacity variants:
• 600kN   (Model MSHT5605P)
• 1000kN   (Model MSHT5106P)
• 2000kN (Model MSHT5206P)

Note: All models available in standard and extended height load frame configurations.

Metalitest can help specify the correct grips, extensometers and software configuration for your application.
